Best Swing Out Bike Rack: Full Rear Access & Security

Swing-out bike racks solve the most frustrating problem in overlanding and camping, which is accessing your vehicle’s rear while bikes remain loaded. Traditional tilt-down racks fail with heavy e-bikes (50 lbs to 75 lbs each). Vertical clearances get tight with suspension, and removing bikes every time you need gear becomes intolerable on multi-day trips. The swing-out mechanism pivots your entire rack 90 to 120 laterally, keeping bikes secured while granting full tailgate or door access. But not all swing-outs handle e-bike weight equally. Most cap at 250 lbs total capacity. This comfortably handles four modern mountain bikes, but it barely accommodates four e-bikes, let alone heavier setups. The latest heavy-duty models now push 300 lbs to 350 lbs capacity specifically for the e-bike and moto-bike surge. However, they introduce compromises in terms of weight, cost, and reduced departure angle.

Van lifers and overland truck campers discovered years ago that standard hitch racks create a brutal choice: unload all bikes to access gear, or drive around with rear access completely blocked. Tilt-down mechanisms help with SUV hatches but become dangerously heavy with multiple e-bikes, imagine tilting 200+ lbs of loaded rack while holding a lever.

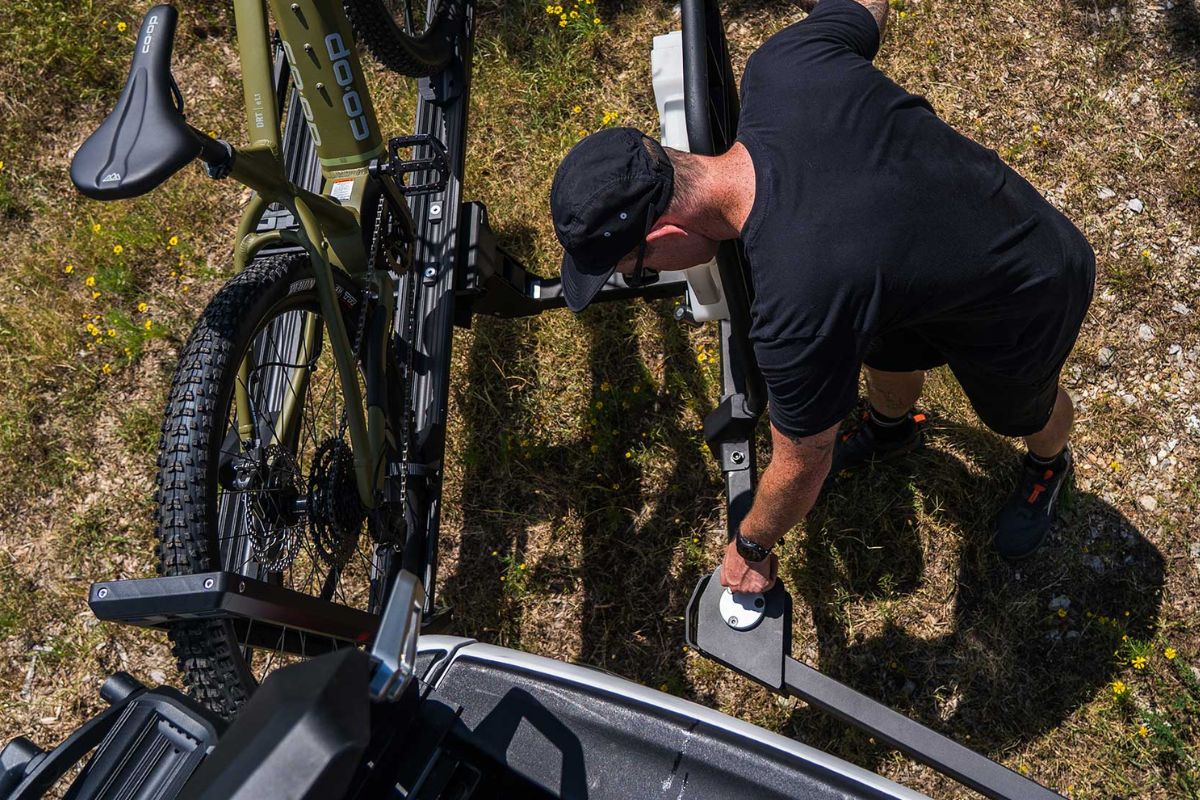

The core function of a swing-out is to swing the entire rack (and bikes) away from the vehicle, providing clear access to the trunk, tailgate, or rear-mounted spare tire. This matters particularly for vehicles like the Jeep Wrangler and Ford Bronco where the spare tire mounts on the tailgate, traditional tilt racks can’t clear that obstruction at all.

The mechanism matters particularly for e-bikes due to weight distribution. A 60 lb e-bike on a 12-inch hitch extension creates massive torque when you swing 90 degrees. Cheap swing-outs sag visibly, creating wobble that rattles bikes together during transit. Premium units use inline arm designs with compression bearings that stay rigid even fully loaded and extended.

Departure Angle Reality Check

Every swing-out adds 12-16 inches to your vehicle’s rear overhang. This reduces departure angle noticeably, steep driveway exits and trail rutouts become scrape risks. Low-clearance sedans and crossovers should carefully measure before committing. Full-size trucks and lifted SUVs handle this better, but it’s still a consideration for serious off-road use.

The swing-out isn’t universally superior, it solves specific problems while introducing others. Before spending $299-1,325 on this mechanism, consider whether your usage actually justifies it.

Skip Swing-Out If…

You mainly shuttle to trailheads with no overnight camping, only carry 1-2 bikes, drive a low-clearance vehicle, or rarely need rear access. A quality tilt rack saves $299-1,325 and eliminates the added weight/overhang. Swing-outs shine for multi-day trips where you’re constantly accessing gear while bikes stay mounted.

These adapters slot between your vehicle’s hitch and your existing bike rack, adding swing functionality to any compatible 2″ rack. The advantage is that you can keep using your preferred rack brand, but the downside is that you’re stacking tolerances and adding substantial weight (35-74 lbs) and length (12-16″) to your setup.

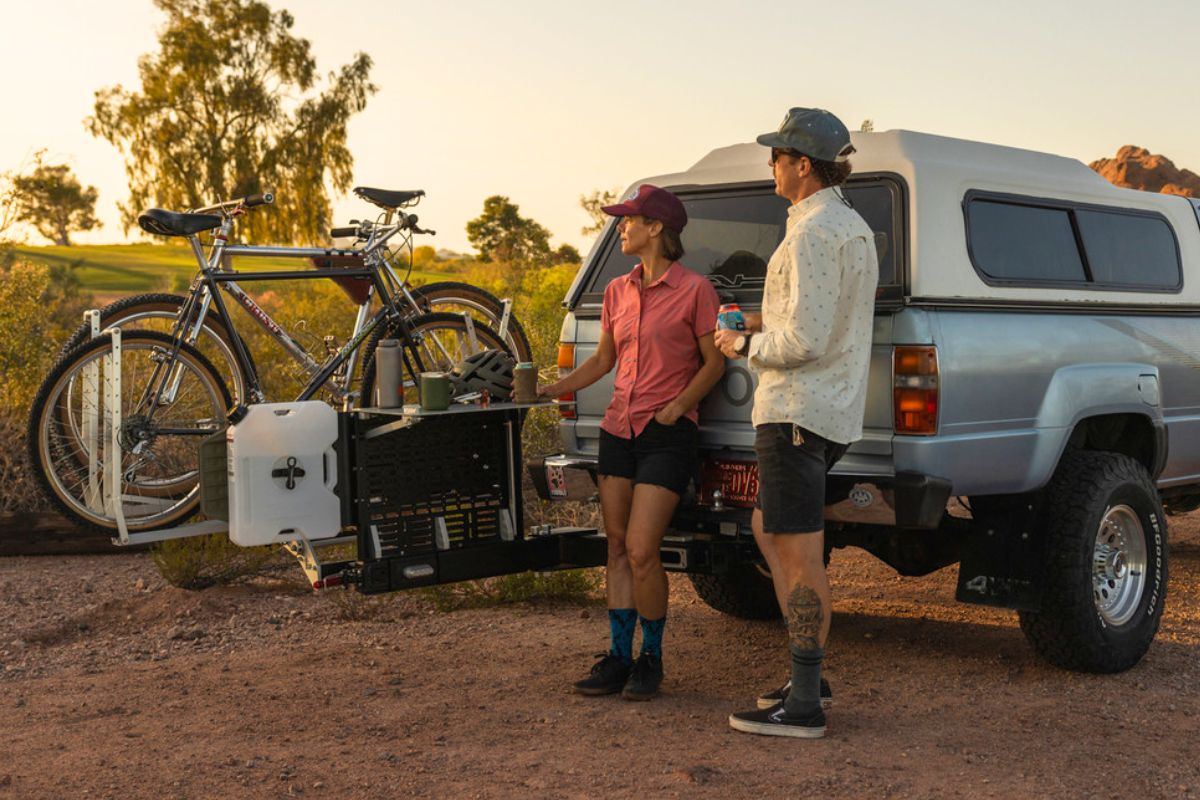

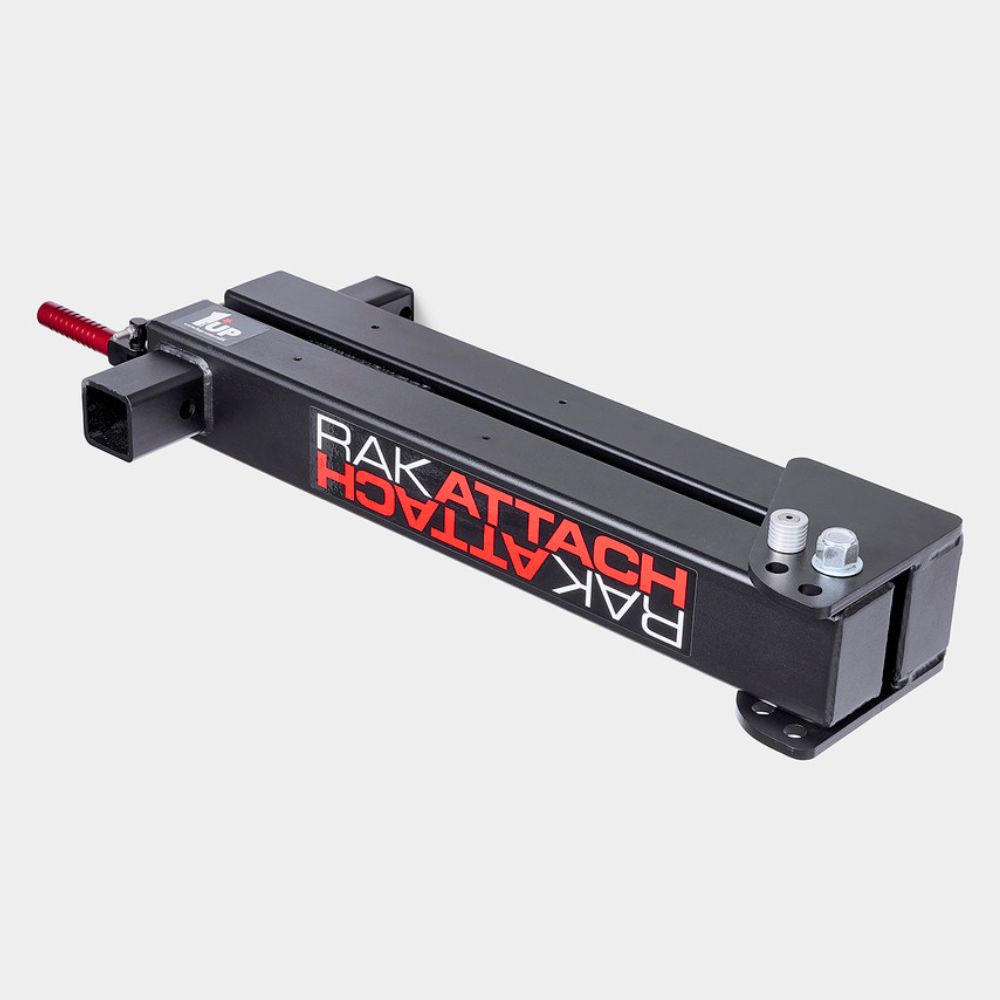

1UP RakAttach 2.0: The Category Standard

The RakAttach 2.0 weighs 56 lbs with a 15″ extension and $589 price tag, making it heavier and pricier than many competitors. The over-under arm design places the swing arm atop the fixed portion, creating a slightly elevated platform. The 275 lb capacity handles four standard mountain bikes or 3-4 lighter e-bikes comfortably, while the 100° swing provides excellent clearance.

The 56 lb weight makes this a semi-permanent installation for most users. The 15″ extension helps with ground clearance when bikes are mounted but adds significantly to rear overhang. At $589, it costs nearly double the Yakima BackSwing, though the lifetime warranty and proven durability justify the premium for serious users.

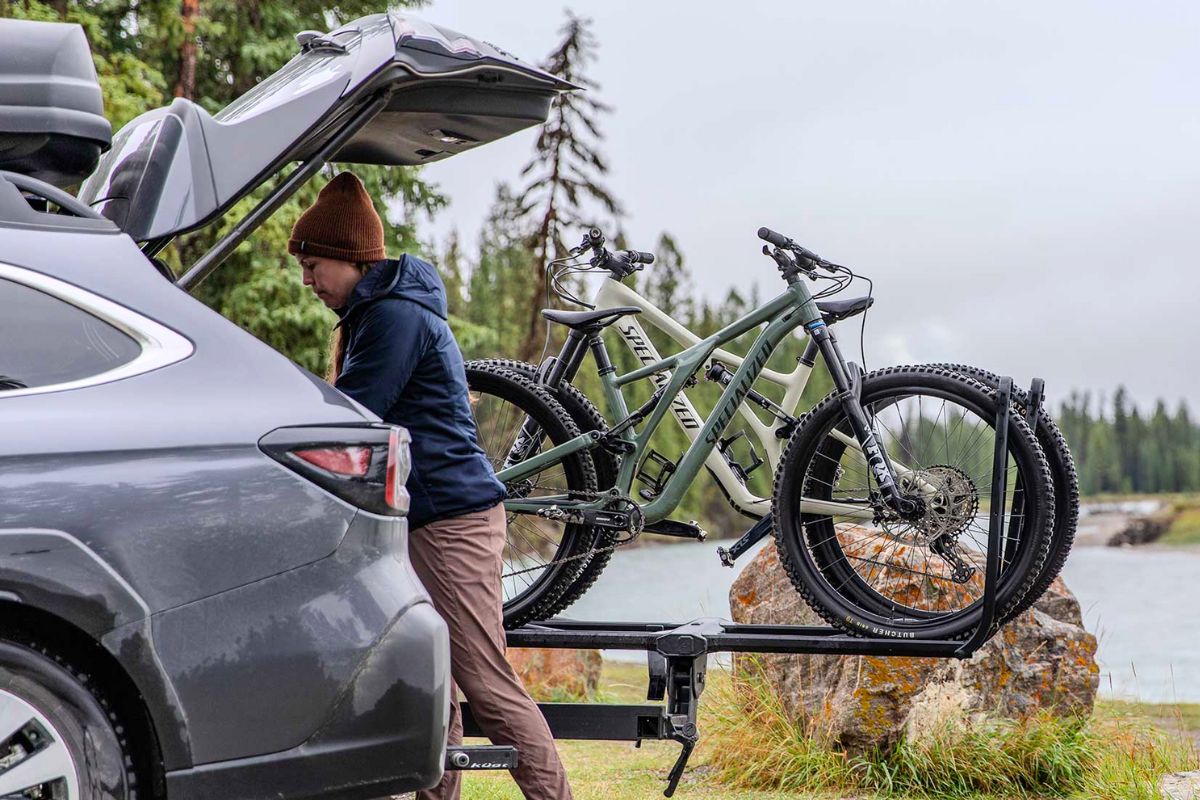

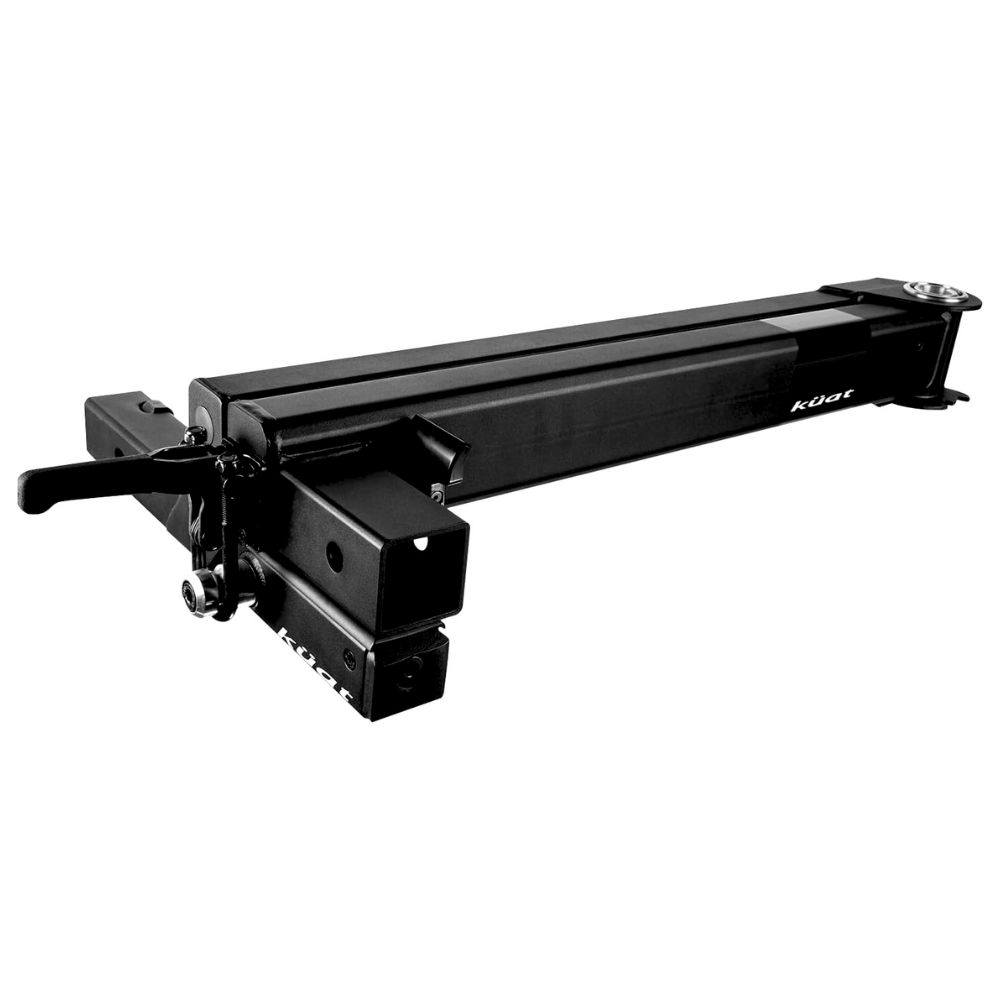

Kuat Pivot V2: The Refined Middleweight

At 39 lbs and $498, the Kuat Pivot V2 sits between the budget Saris ($349) and premium 1UP ($589). The inline arm design places both sections adjacent rather than stacked, improving aesthetics and reducing sagging. The FlatLock hitch cam system eliminates wobble when properly torqued, just don’t exceed 25 ft-lbs or you’ll snap the cam bolt.

The two-stage swing (90° with auto-lock, then 120° with lever pull) gives flexible rear access depending on clearance needs. However, the 250 lb capacity becomes limiting with four e-bikes, and Kuat explicitly states “not recommended for RVs,” excluding many van conversion enthusiasts.

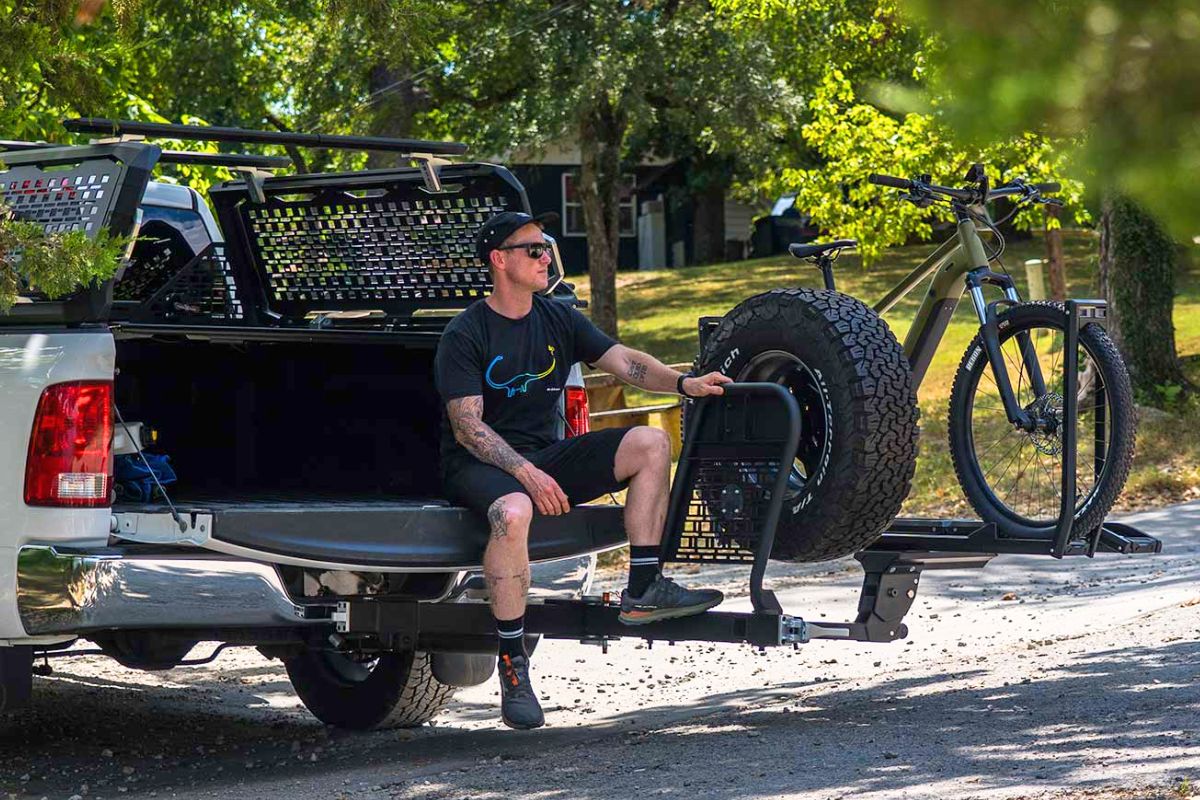

Kuat Pivot XD: Heavy-Duty Upgrade

Kuat’s answer to the e-bike weight problem adds 100 lbs of capacity (350 total) through beefed-up construction that pushes weight to 68 lbs and price to $798. The forged latch design and machined safety pin provide noticeably improved rigidity under load compared to the V2. Sealed ball bearings keep the swing smooth even when maxed out.

The trade-off is stark: at 68 lbs and $798, this becomes a semi-permanent installation costing $300 more than the V2 and $209 more than the 1UP RakAttach 2.0. It’s passenger-side swing only (no driver option), and requires Class III hitches minimum. The 15″ extension adds significant overhang. But if you’re hauling 4+ heavy e-bikes regularly, the extra capacity justifies these penalties.

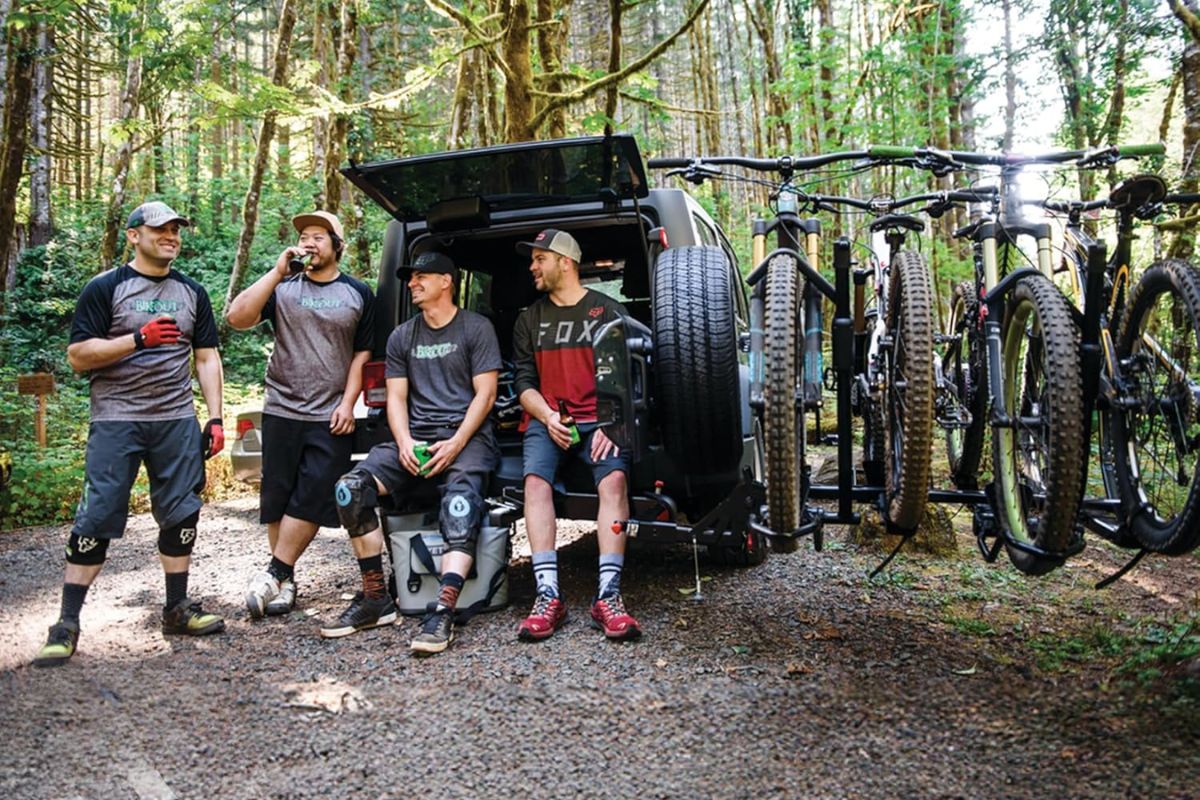

Yakima BackSwing: Budget-Conscious Simplicity

At $379 and 35 lbs, the BackSwing undercuts competitors while delivering functional swing-away capability. It’s the lightest option, making removal feasible if you only need swing functionality occasionally. The 90° single-position swing keeps the mechanism simple, no multi-angle complexity. The 13″ extension sits between Kuat’s 12″ and the longer options.

The limitations reveal themselves quickly. The U-bolt latch mechanism arrives loose from the factory, requiring immediate adjustment to prevent the arm from unlatching while driving. The 250 lb capacity and passenger-side-only swing further constrain use cases. Some users report excessive receiver play even with the top bolt tightened, requiring shimming for stable fit.

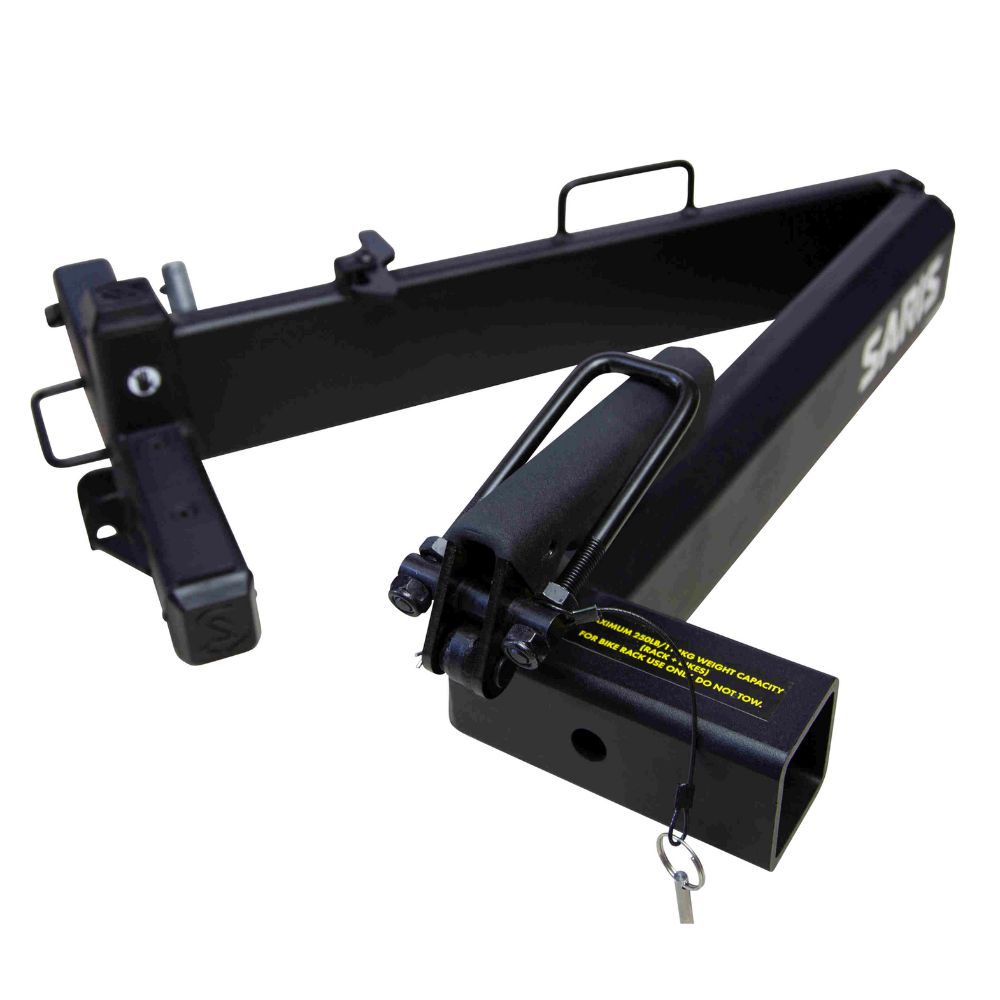

Saris Swing Away: The Safety-Focused Middleweight

Saris’ $349 entry at 43 lbs features redundant safety mechanisms requiring simultaneous pin removal, clasp release, and quick-release hook operation potentially overkill, but passing Saris’ strict internal testing. The dual integrated handles and included Hitch Tightener (borrowed from 1UP’s design) create solid anti-wobble performance. The 14″ extension clears tight exhaust routing better than Kuat’s 12″, positioning racks farther from the vehicle.

The problems reveal themselves under load. The 90-degree locking pin bent within one week for an owner carrying four bikes at 210 lbs, well under the 250 lb limit. Reviews consistently flag undersized hinges, snapping U-bolts, and the clasp falling between the ramp when closing slowly. Saris ships replacement parts readily, suggesting they’re aware these failures happen regularly. At $349, it costs $50 more than Yakima while suffering similar quality issues, making it poor value.

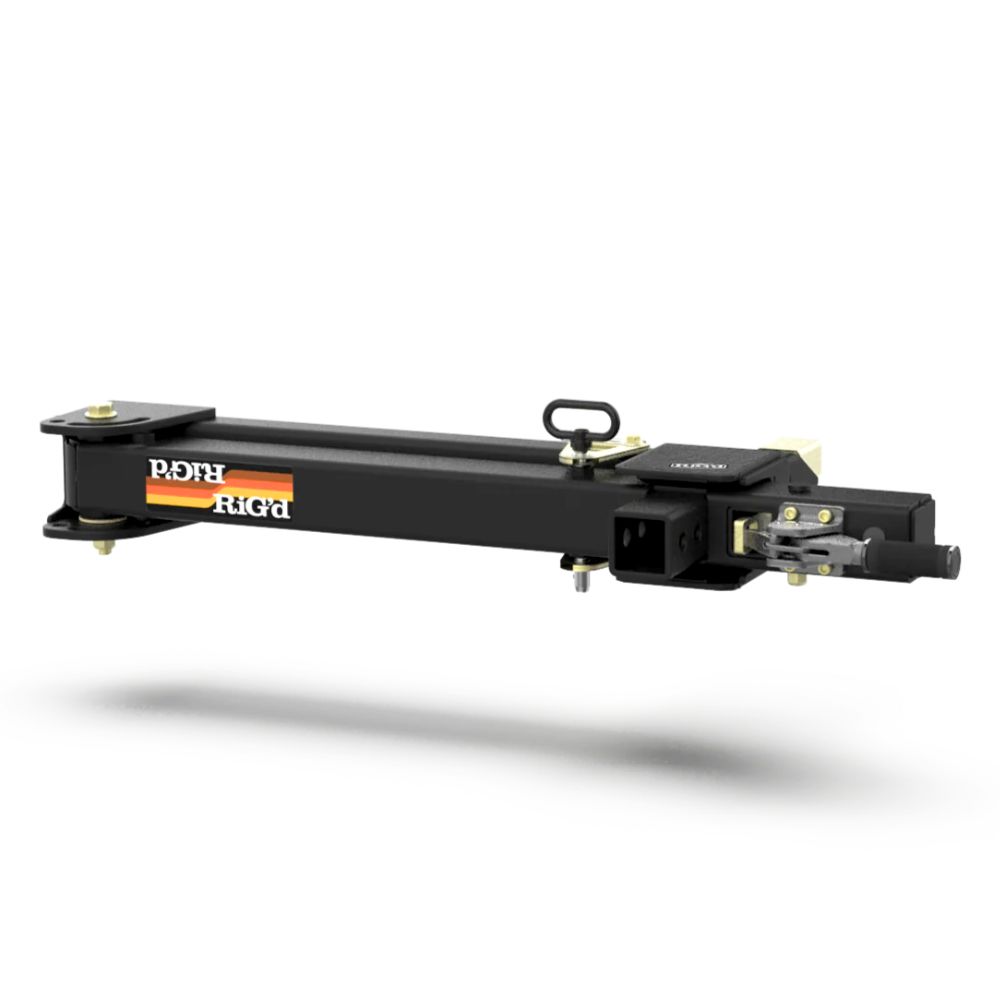

RambleSwing & Pro: The Overland Champions

RiG’d Supply builds gear for the overlanding crowd, and both RambleSwing models reflect that focus. The standard version weighs 60 lbs with 300 lb capacity (50 lbs more than mainstream 250 lb competitors) at $799. The Pro version pushes to 74 lbs, 350 lbs capacity, and $849, adding 2″ width for full-size truck clearance and the modular HitchingPost system for mounting fuel cans, water, and accessories.

Both use inline construction with Delrin glide plates that stay smooth even when dust-caked. The flip-flop technology lets you install it for either side swing without buying a separate model, just flip it around in your hitch. The 14-16″ extension (standard vs Pro) provides excellent clearance. The integrated step with battleship-grade Jessup grip tape actually works as a useful platform for roof access.

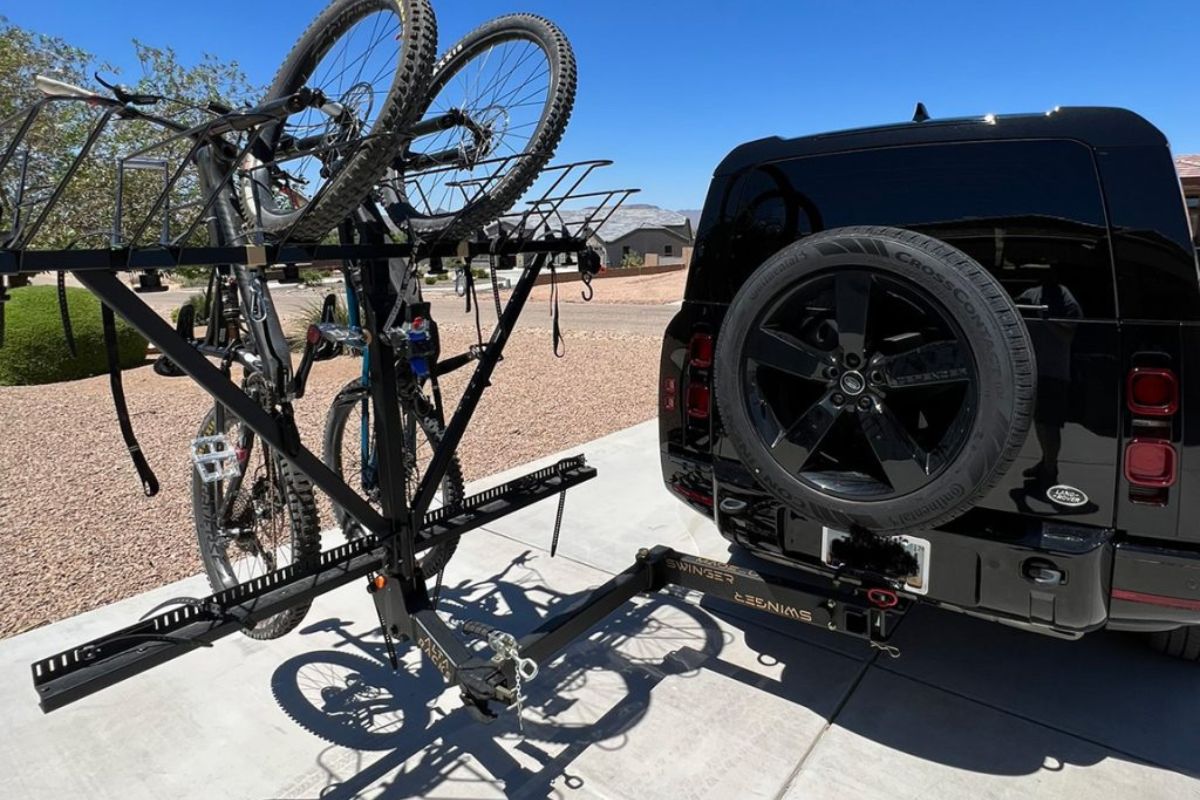

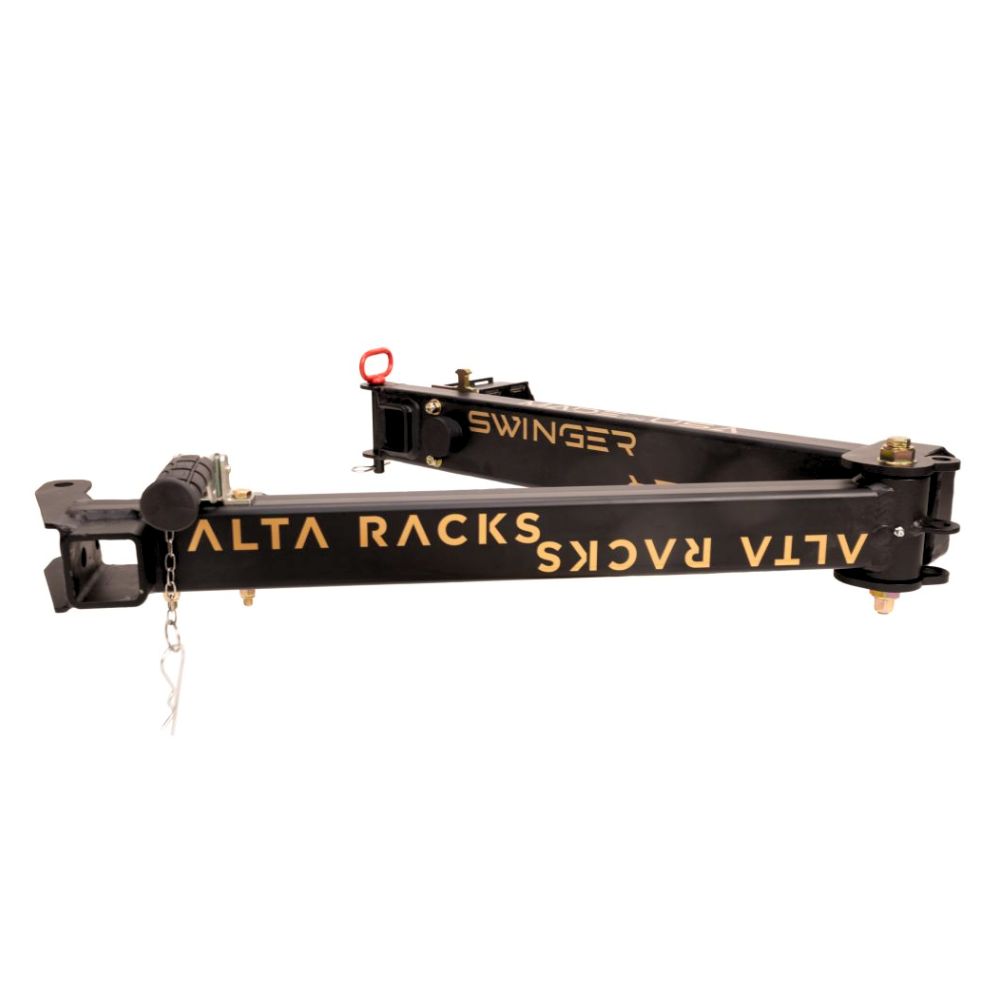

ALTA Swinger: The Vertical Rack Specialist

ALTA Racks builds vertical bike carriers to military specifications, and the Swinger continues that philosophy. At 67.5 lbs and $1,325, this is the heaviest and most expensive adapter tested, but the 350 lb capacity and proprietary integration with ALTA vertical racks justify the premium for dedicated users. The inline design with internal stabilizer and guide system creates exceptional rigidity. The bidirectional capability lets you flip the latch to swing either direction without reinstalling.

The straight-line geometry places the rack receiver in perfect alignment with your vehicle’s hitch, reducing stress compared to offset designs. Combined with ALTA’s vertical racks (which mount bikes upright), this creates a system capable of hauling four 70+ lb e-bikes without the sagging and wobble plaguing lesser combinations. However, at $1,325, it costs $527 more than the comparable RambleSwing Pro and requires ALTA racks exclusively.

Rather than adding a separate adapter, these racks build swing functionality directly into the design. You get optimized geometry and often better weight distribution, though you’re locked into one brand’s ecosystem. Total system costs range from $750-1,300+.

Yakima FullSwing: The Hanging Rack Evolution

The FullSwing represents Yakima’s integrated swing-away hanging rack, using padded cradles with ZipStrip ratcheting retention instead of traditional frame tube contact. At 56 lbs and $699, it significantly undercuts RockyMounts’ integrated options ($899 BackStage, $1,299 AfterParty) while carrying 4 bikes versus their 2-bike limit. The 180° swing matches the RockyMounts models for complete rear clearance. The hanging design keeps the rack lighter than platform alternatives, making it easier to install and remove than the 59-60 lb RockyMounts options.

The 40 lb per-bike limit (160 lbs total) immediately disqualifies most e-bikes. Three 50 lb e-bikes hit 150 lbs with minimal margin, and four e-bikes exceed capacity entirely. At $699, you’re paying $200 less than the BackStage while getting 4-bike capacity versus 2-bike, but sacrificing per-bike weight capacity (40 lbs vs 60 lbs) and platform stability. The FullSwing makes sense for families with standard mountain bikes or road bikes under 40 lbs each, but the hanging design requires top-tube adapters for most full-suspension and women’s bikes. For $699, it’s the most affordable complete integrated swing-away system, but only if your bikes stay under the weight limits.

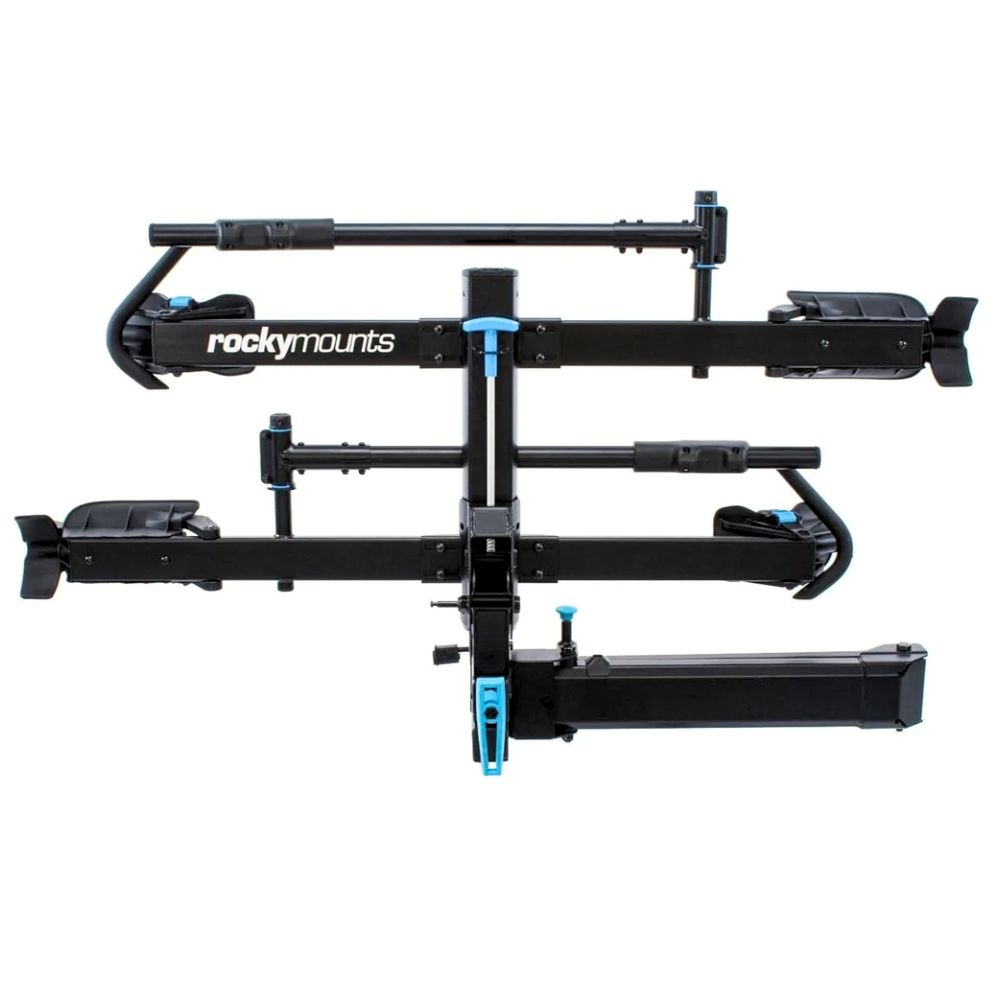

RockyMounts BackStage: 180-Degree Van Solution

RockyMounts integrated swing functionality directly into their MonoRail platform, creating the first rack offering 180-degree swing. At 59 lbs and $899, it weighs similarly to heavy-duty adapters (Kuat XD at 68 lbs, RambleSwing Pro at 74 lbs) but integrates the mechanism for cleaner aesthetics. The extreme swing range places bikes perpendicular to the vehicle, clearing even wide van sliding doors completely. The 60 lbs per-bike capacity (120 lbs total) handles e-bikes easily through front-wheel clamp design that protects frames.

The integrated approach trades flexibility for refinement. You’re locked into 2-bike maximum with no expansion, and the unbalanced weight distribution makes solo installation difficult despite being lighter than buying separate components. The screw-type swing release proves slower than latch designs from Kuat or 1UP. At $899, it costs $200 more than the FullSwing ($699) while offering superior per-bike capacity (60 lbs vs 40 lbs) but half the bike count (2 vs 4). For van owners needing that full 180° swing to clear sliding doors, the BackStage delivers purpose-built functionality. For trucks and SUVs, standard 90° adapters work better at lower cost.

RockyMounts AfterParty: Second-Gen Refinement

RockyMounts addressed BackStage criticisms with the AfterParty, combining the BackStage base with the refined GuideRail platform. The dual load arms eliminate frame contact entirely while allowing asymmetric bike loading to prevent handlebar interference. At 60 lbs, it weighs identically to BackStage but delivers cleaner aesthetics with fewer plastic components. The 180-degree swing clears van sliding doors, the included 10mm square link chain provides serious security, and wheelbase compatibility extends to 55″ versus BackStage’s 50″.

The price positioning raises questions. At $1,300, the AfterParty costs $550 more than BackStage for evolutionary refinements rather than revolutionary changes. You’re paying premium pricing for asymmetric loading capability and slightly longer wheelbase compatibility, but still locked to 2-bike maximum with no expansion. The 60 lbs with unbalanced weight distribution makes solo installation difficult, and the 3″ tire width limit excludes fat bikes. Most van owners still require RockyMounts’ 8″ hitch extension ($40-50) to clear wide handlebars from rear doors.

Vertical racks mount bikes upright by the front wheel, reducing frame stress and improving ground clearance. Paired with swing adapters, they handle heavy e-bikes on Jeep Wranglers, Ford Broncos, and Sprinter vans if you can manage the combined weight complexity.

1UP Recon, Thule ReVert, and Yakima HangOver are highly capable, but their per-bike capacity varies significantly. Only ALTA reliably handles bikes over 60 lbs (up to 70 lbs). This upright positioning keeps bikes closer to the vehicle for better departure angles. When swung out, the vertical orientation easily clears door openings on vehicles with rear-mounted spare tires.

Verify Compatibility First

Not all vertical racks work with all swing adapters. 1UP RakAttach supports any brand’s vertical racks. Kuat Pivot V2 works with some but is not RV-rated. Yakima BackSwing only supports their HangOver and HangTight 4 (it does not support the 6-bike version). ALTA Swinger works exclusively with ALTA racks. RambleSwing Pro handles vertical racks up to 150 lbs bike weight. Verify before buying, as combined systems often cost $1,200-$1,800.

E-Bike Specific Recommendations

For vehicles with rear-mounted spare tires, such as the Jeep Wrangler, Ford Bronco, and Toyota 4Runner, pairing a vertical rack with a swing adapter is a necessity for accessing the rear cargo area. The ALTA Superior E-Dub is purpose-built for e-bikes, offering a robust 70 lb per-bike capacity. For Sprinter vans and other large vehicles, the 1UP Recon or Thule ReVert provide superior capacity scalability (up to 6 bikes). Remember,  removing batteries before transport reduces weight by 6-8 lbs per bike, a 24-32 lb reduction with four e-bikes, which significantly improves handling and reduces stress on the hitch.

The swing-away adapters covered above attach to your existing hitch. Thule took a completely different approach for European campervans with the VeloSwing, a full towbar replacement system that swings the entire towing mechanism to the side.

This isn’t an adapter, it’s a permanent installation that requires bumper replacement and professional fitting. If you’re running a Fiat Ducato, Peugeot Boxer, Citroën Jumper, Opel Movano, or Toyota Proace Max, this represents the only manufacturer-engineered swing-away solution designed specifically for these platforms.

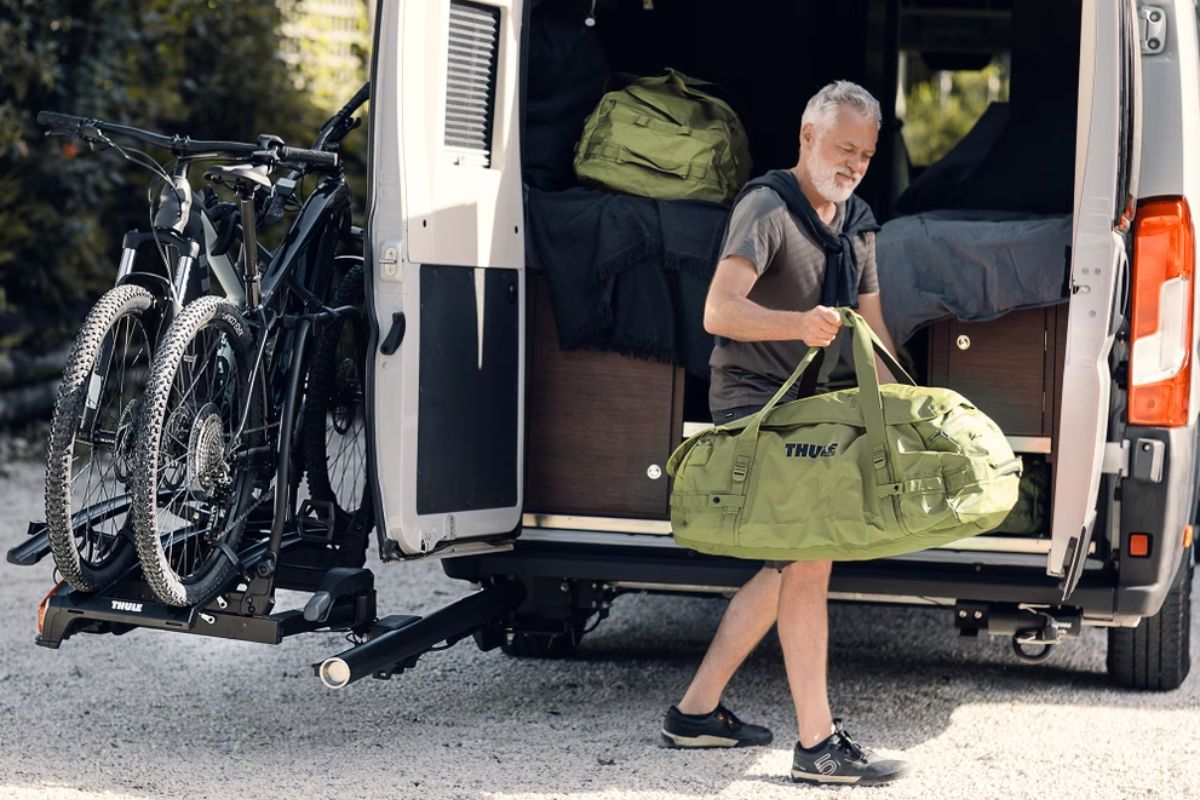

Thule VeloSwing: The Integrated Towbar Solution

At 117 lbs and £1,500-2,000+, the VeloSwing replaces your van’s entire rear bumper and towbar with a 95-degree swing system that maintains 3,000 kg towing capacity and 150 kg vertical load rating. Professional installation takes 2.5 hours minimum and involves cutting away the factory bumper for Thule’s pre-cut replacement. The color-coded locking indicator shows green when secured simple but effective before driving.

The appeal, you can mount bike racks, cargo boxes, or tow trailers using the same certified towbar that swings completely clear of barn doors. For van-lifers who occasionally tow boats or utility trailers, this eliminates separate swing-away adapters and fixed towbars. The limitation kills it for most readers, unavailable for North American Sprinter, Transit, or ProMaster platforms. This targets the Euro-spec Ducato/Boxer/Jumper chassis dominating European conversions but remaining niche stateside. If you’re not running one of these specific European vans, skip this entirely and use the universal adapters covered earlier.

The right swing-out depends less on which model has the coolest features and more on matching your actual usage patterns, vehicle type, and bike weight requirements.

Integrated vs Adapter: The Cost Reality

Compare total costs carefully. The Yakima FullSwing at $699 (integrated 4-bike) costs less than BackSwing adapter ($379) + decent rack ($400+). RockyMounts BackStage at $899 (integrated 2-bike, 180° swing) costs more than 1UP RakAttach 2.0 ($589) + your existing rack. The AfterParty at $1,300 makes no financial sense versus BackStage at $899 for identical capacity. Run the numbers before assuming integrated systems cost more.

Even the best swing-out fails without proper installation and maintenance. These systems multiply leverage forces, making every loose bolt and worn bearing a potential failure point.

Critical Installation Steps

When to Replace

Replace the swing-out immediately if you notice: cracked welds, bent arms, stripped threads, or damaged pivot bearings. These aren’t repairable field fixes, a catastrophic failure while driving could send bikes into traffic or damage your vehicle. The $299-1,325 replacement cost beats a $3,000 bike (or worse, liability from road debris).

Swing-out purchases often go wrong in predictable ways. Learn from others’ expensive mistakes before spending $299-1,325 plus rack costs.

The Bottom Line: Is Swing-Out Worth It?

Swing-out adapters are vital for van lifers and overland campers who need full rear access during multi-day trips. However, weekend warriors hauling bikes to trailheads can save hundreds ($299-$1,325) and eliminate unnecessary weight by using quality tilt-down racks. The key purchase decision revolves around e-bike capacity. Standard adapters (∼250 lbs) like the Kuat Pivot V2 ($498) often struggle to safely manage four e-bikes, forcing owners to consider the far more expensive heavy-duty tier (∼300-350 lbs).

The best rack choice always comes down to actual usage, not maximizing specs you won’t need. If you regularly haul e-bikes, investing in a high-capacity model is non-negotiable for safety. The RambleSwing Pro ($849) offers the strongest feature-to-price ratio in that segment. Conversely, don’t overpay for the heavy-duty features of the RambleSwing Pro if a general-use adapter like the Kuat Pivot V2 is sufficient for your needs. Avoid the expensive ALTA Swinger ($1,325) unless you are fully committed to the ALTA rack ecosystem.
